Products		Trade Name	Description	Content
System Galaxy
	System Galaxy Software		click to enlarge System Galaxy (SG) is a scalable, enterprise-class Access Control & Management solution that seamlessly integrates security and building management functions. Compatible with Microsoft Windows 2000 (or higher) environments, SG interacts with other 3rd party systems. System Galaxy combines its scalable design with built-in customizable features. This makes it easy to meet the needs of any size customer, from small business to medium and large enterprise organizations and easily expands as customer needs change.
	Hardware 500i Series Controller		click to enlarge The Model 508i (eight port) and Model 502i (two port) Access Control Panels are the most flexible, dependable enterprise class access control solution available. The system's modular design allows for easy expansion - multiple panels can be linked together to create a custom system that is as large (or small) as needed.
	Dual Port Interface (DPI)		click to enlarge An integral component of the system, the Dual Port Interface (DPI) was designed with reliability and economy in mind. One DPI is used to activate two ports on on all Galaxy access control panels. This allows for more economic installations when all the ports on a given panel are not being used. It also provides exceptional surge protection to guard against damage from electrical spikes, and is easily replaced (if need be) by simply “hot swapping” a new DPI. There is no need to shut the system down for simple maintenance.
	Alarm Monitoring Module (AMM)		click to enlarge The Alarm Monitoring Module allows the system to monitor different devices, such as alarms, motion detectors, temperature sensors, etc. The AMM will notify the system operator of any changes in condition (i.e., forced entry, low temperature). The module connects to any port on the 508/502 panel, and can monitor up to 16 different devices per module. Multiple modules can be used to accommodate all required devices.
	Output Relay Module (ORM)		click to enlarge Designed with true integration in mind, the Output Relay Module (ORM) provides control of any device that can be controlled by a switch. The module connects to any port on the 508/502 panel, and can monitor up to 16 different devices per module. Multiple modules can be used to accommodate all required devices. From lighting, to office equipment, to door locks, to HVAC equipment the ORM allows any device to be activated (or deactivated) based on another event taking place elsewhere in the facility (i.e. the first person to enter the building triggers the copy machine to switch on automatically).
	Elevator Control Module(ECM)		click to enlarge Designed specifically for elevator applications, the Elevator Control Module provides gives 508/502 panels superior control over individual elevators. Access to specific floors can be granted through card or keypad access, and can be granted or withheld based on time schedules. Elevators can even be programmed to allow public access during business hours, and remain restricted during all other times. The Elevator Control Module simply connects to any control port on the 508/502 panel. Multiple units can be used to control many floors.
	RS-232 Enrollment Reader		click to enlarge Cards can now be swiped or learned into the System Galaxy system using a Galaxy provided RS-232 Programming Reader/Interface. This interface allows Transmissive Infrared, ABA and Wiegand reader technologies to plug into a communication port on the back of the PC.
	600 Series Controller		click to enlarge The mode 600 Access Control Panel is the most flexible, dependable integrated access control solution available. Operating with System Galaxy's state-of-the-art software, the Model 600 can interface with CCTV, DVR, Galaxy's video verification, building controls, biometrics, time & attendance and visitor registration. Modular design allows for easy expansion, up to sixteen door controllers can be linked via IP to create a large or small system configuration with unlimited doors. Up to 50,000 users per cluster, 254 user-defineable time schedules, 1500 access groups, 10,000 event log buffer and native TCP/IP
	600 Series Dual Port Interface		click to enlarge Dual Port Interface One Dual Port Interface (DPI) board supports two reader ports on the Galaxy 600 control panels. It provides two relays for each port and supervision of door contacts. It also provides exceptional surge protection to guard against damage from electrical spikes, and is easily replaced by simply “hot swapping” a new DPI while power is still applied to the controller.
	600 Series Digital Input/Output Board		The Digital Input/Output (DIO) board controls input and output devices. The 600 Digital I/O board provides Input Supervision and introduces a new feature called Hypervision. Hypervision is a new on-board feature that provides an added layer of se-curity by protecting supervised inputs from being defeated. Hypervision uses alternating voltages and additional thresholds for the supervised input. The board reports the appropriate event (alarm, trouble, or safe).
	600 Series Dual Serial Interface Board		click to enlarge The Dual Serial Interface (DSI) board allows Galaxy to interface with third party vendors using RS-232 or RS-485 connection. There are two RS-232 channels and two RS-485 channels on a board.
	RS-232 Enrollment Reader		Cards can now be swiped or learned into the System Galaxy system using a Galaxy provided RS-232 Programming Reader/Interface. This interface allows Transmissive Infrared, ABA and Wiegand reader technologies to plug into a communication port on the back of the PC.
Galaxy DVR
	Discovery Series DVR	Discovery Series	Galaxy Control Systems’ H Series DVR is a high performance video management solution designed for recording real-time 30 PPS 4 CIF video and audio, on all channels. With hardware based MPEG-4 compression and the ability to output high-resolution multiplexed video for monitoring, the H Series is perfectly suited for your most demanding surveillance applications.
CCTV
	Analog Camera	Fixed Mini Dome	High ResTamper Resistant Indoor Dome, White, 4~9mm Varifocal Day/Night,500TVL, 3-Axis Gimbal, Sony Super HAD 1/3”, Sony SS-11X DSP, 12vDC, BLC, AGC Turbo, Quick Mount.
	IP Cameras		Toshiba IP Cameras
	PTZ Cameras	Discovery 3 Series PTZ	Certified to be compatible with Discovery 3 Series DVR
Readers
	Magstripe Readers	HID/Indala MR Sensor
	Barcode Readers	EZ
	Keypad Readers

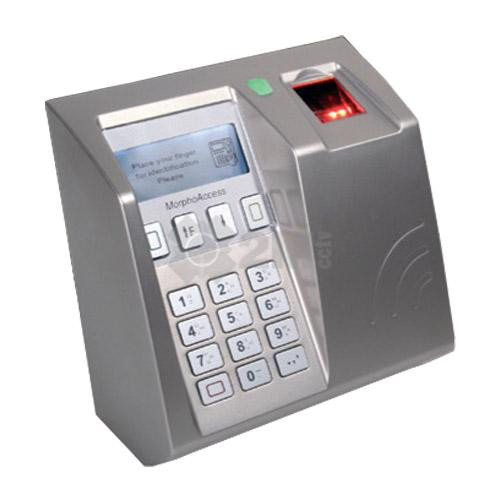

	Biometric Readers	Sagem Recognition Systems
	Wireless Readers
	Smart Readers
	FIPS 201 Readers
Printers
	Magicard Printer	Magicard	www.galaxysys.com/index.php?tpl=badging/badging.
