• Thermal protection to keep buildings warm in winter and cool in summer.


• Lower energy bills by preventing heat loss from buildings in winter and enabling more efficient air conditioning in summer.


• Acoustic protection to block outside noise and segregate internal noise.


• Sustainability and a better environment by reducing energy use in buildings to counter “global warming.”

Products		Trade Name	Description	Content
Building Insulation
	Acoustic & Thermal Insulation	Knauf's Batts and Blankets	Thermal and acoustical products made from highly resilient, inorganic glass fibers bonded by a thermosetting resin. The products are available unfaced or with kraft, foil, or flame-rated FSK-25 (Foil-Scrim-Kraft) foil facings.
	Acoustic & Theater Insulation	Knauf Black Acoustical Board	click to enlarge A heavy density fiber glass board insulation made from inorganic glass fibers bonded by a thermosetting resin. The base board is amber with a black polymer top layer of fiber glass, and a black overspray is applied to provide a smooth, tough finish.
	Acoustic, Thermal & Theater Insulation	Knauf Insulation Board	click to enlarge A thermal and acoustical insulation product made from inorganic glass fibers preformed into boards bonded by a thermosetting resin. It is available plain, with a factory-applied FSK facing or PSK (metalized polypropylene-scrim-kraft) facing, or with a factory-applied all-service jacket (ASJ).
	Acoustic & Theater Insulation	Knauf Wall and Ceiling Liner M	click to enlarge A black, flexible fiber glass blanket with a black mat facing adhered to one surface. It provides thermal and acoustical insulation, and a visual barrier. Its smooth, tough surface resists damage during installation.
	Metal Building Insulation	Knauf Metal Building Insulation	click to enlarge A resilient, flexible blanket insulation made from inorganic glass fibers bonded by a thermosetting resin. The blanket is suitable for application of facings and has sufficient tensile and bond strength for normal handling by the laminator and contractor. The blanket may also be used unfaced as additional insulation to fill voids in walls and roofs of metal buildings.
	Specialty Insulation	Knauf Basement Wall Insulation	A flexible fiber glass blanket with a choice of reinforced vapor retarders.
	Specialty Insulation	Knauf Sill Sealer	A flexible unfaced fiber glass insulation designed for use between the sill plate and the foundation wall to provide an air infiltration barrier.
	Thermal Insulation	Jet Stream® Fiber Glass Blowing Insulation	click to enlarge An unbonded, virgin fibrous glass blowing insulation designed with optimal thermal properties, and excellent coverage and blowing characteristics.
Air Handling
	Duct Systems	Knauf Air Duct Board-AGM	click to enlarge A resin-bonded fiber glass formed into rigid, rectangular boards faced on one side with a fire-resistant foil-scrim-kraft (FSK) vapor retarder and a lightweight fiber glass mat on the airstream surface. Available in EI-475 or EI-800, with a butt edge or a factory-molded shiplap edge, it offers excellent thermal and acoustical performance.
	Duct Systems	Knauf Air Duct Board-M	click to enlarge A resin-bonded fiber glass formed into rigid, rectangular boards faced on one side with a fire-resistant foil-scrim-kraft (FSK) vapor retarder, and its airstream surface is faced with a tightly bonded, non-woven mat. Available in EI-475 or EI-800, with butt edge or factory-applied shiplap edge, it offers excellent thermal and acoustical performance.
	Duct Systems	Knauf KoolDuct®	click to enlarge A pre-insulated, high performance air duct system for industrial and high-end commercial applications. The system uses a CFC-free phenolic foam board faced on both sides with reinforced foil. Patented, specially engineered, aluminum flanges are designed to connect the duct sections to assure a strong, tight closure.

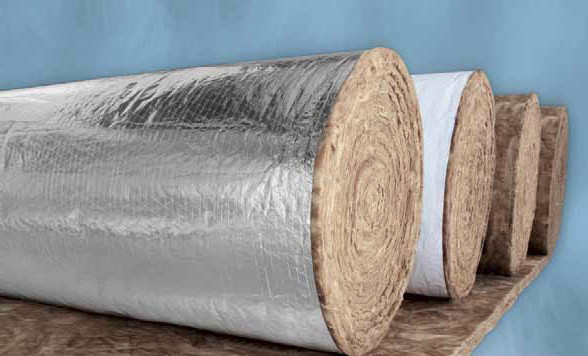

	External Duct Insulation	Knauf Duct Wrap	click to enlarge a thermal and acoustical insulation made from highly resilient, inorganic glass fibers bonded by a thermosetting resin. It is available unfaced, with a multi-purpose foil-scrim kraft (FSK) jacket, a metalized polypropylene-scrim-kraft (PSK) jacket, or with white or grey vinyl vapor retarders. Vapor retarders have a 2" (51 mm) stapling flange on one edge, and the factory-applied facing assures uniform quality. KwikStretch Markings on the staple flange (FSK and PSK only) allow for easy and accurated job site measurement.

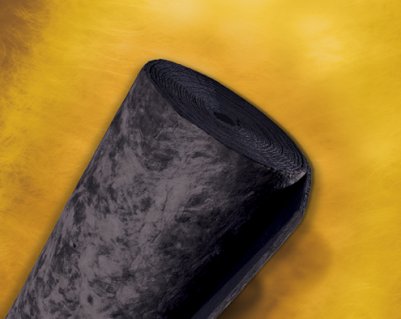

	Internal Duct Insulation	Knauf Duct Liner E•M	click to enlarge A flexible, mat-faced insulation made from inorganic glass fibers bonded by a thermosetting resin with an encapsulant edge coating. It is faced with a tightly bonded mat to give the airstream surface a smooth, tough surface, resisting damage during installation and operation. The encapsulant edge coating eliminates airstream surface flaring.
	Internal Duct Insulation	Knauf Rigid Plenum Liner	click to enlarge A heavy-density fiber glass board insulation made from inorganic glass fibers bonded by a thermosetting resin. Its base board is amber with a black top layer of fiber glass. A black polymer overspray is applied to the airstream side for a smooth, tough finish.
	Internal Duct Insulation	Knauf Textile Duct Liner	click to enlarge A flexible, mat-faced insulation made from textile type glass fibers bonded by a thermosetting resin with an encapsulant edge coating. It is faced with a tightly bonded mat to give the airstream surface a smooth, tough surface, resisting damage during installation and operation.
Industrial & Commercial Insulation
	Pipe & Equipment Insulation	Knauf 1000° Pipe Insulation	click to enlarge A molded, heavy-density, one-piece insulation made from inorganic glass fibers bonded with a thermo-setting resin. It is produced in 3' lengths with or without a factory-applied jacket. The jacket is a white kraft paper bonded to aluminum foil, and it is reinforced with a fiberglass scrim. The longitudinal lap of the jacket is available with or without a self-sealing adhesive, and a butt-strip is furnished for each section.
	Pipe & Equipment Insulation	Knauf ET Batt 1000° and HD Blanket 1000°	click to enlarge Semi-rigid thermal insulations (1.6 PCF, 25.6 kg/m3 made from highly resilient, inorganic glass fibers, bonded by a high-temperature thermosetting resin.
	Pipe & Equipment Insulation	Knauf ET Blanket 1000°	click to enlarge A lightweight thermal insulation blanket (1.1 PCF, 17.6 kg/m3) made from highly resilient, inorganic glass fibers bonded by a high-temperature thermosetting resin.
	Pipe & Equipment Insulation	Knauf Elevated Temperature Board	click to enlarge A lightweight insulation (2.8 PCF, 44.9 kg/m3) made from inorganic glass fibers bonded with a high-temperature thermosetting resin. It is a semi-rigid, board-like form with superior handling properties and insulating effectiveness at minimum cost.
	Pipe & Equipment Insulation	Knauf Elevated Temperature Panel 1000°	click to enlarge A semi-rigid thermal insulation board (2.4 PCF, 38.4 kg/m3) made from highly resilient, inorganic glass fibers bonded by a high-temperature thermosetting resin.
	Pipe & Equipment Insulation	Knauf Pipe and Tank Insulation	click to enlarge A semi-rigid fiber glass board in roll form faced with a factory-applied FSK or ASJ vapor retarder, or a glass mat facing. The glass fibers are adhered perpendicular to the jacketing for flexibility and easy installation.
	Pipe & Equipment Insulation	Knauf Kwik Flex™ Tank Insulation	click to enlarge A 48" wide semi-rigid fiber glass blanket, 2.5 pcf density, in roll form. It is available faced with a factory-applied ASJ, FSK or PSK vapor retarder jacket.
	Pipe & Equipment Insulation	The Proto® Fitting Cover System	Consists of one-piece, pre-molded, high-impact PVC fitting covers with fiber glass inserts and accessories. Accessories are elbows, tee/valves, end caps, mechanical line couplings, specialty fittings, jacketing, tacks, and PVC tape.
