Ceme-Tube LLC

1293 County Rd. I
Hudson, WI 54016

Phone:715-377-2133
Fax:715-377-2135

forms and footings by Ceme-Tube LLC
request catalogRequest
Catalog
    send email Send Message to
Ceme-Tube LLC



Web Site: www.cemetube.com
e-mail: send email
      Specs       CAD       LEED product data for forms and footings
Overview:
In October of 2004, I needed to make pier footings for my cabin in northern Minnesota. The building site was located in a wet area and I needed pier forming tubes that could withstand the ground water. After an extensive search, I found that there was no such product on the market. Thus, the idea for the Ceme-Tube was born. After two years of research and development, the CEME-TUBE™ is finally being manufactured and is now available to the commercial and public markets. Try the CEME-TUBE™ on your next project involving pier footings; I am sure you will find it is far superior in every aspect to the conventional cardboard forming tube.

-Jim Bradac, Inventor of the Ceme-Tube.

Why Switch to CEME-TUBE™?
  • Eliminates "friction frost heaving"
  • Impervious to ground water
  • Impervious to moisture, before and after use
  • Can be completely back-filled before pouring concrete
  • Can easily handle rough job site conditions, with out losing integrity
  • The CEME-TUBE™ works perfectly in conjunction with all manufactured footing bells like Bigfoot
  • Produces architectural grade piers
  • Works well for underwater docks and piers
  • Can be stacked to achieve taller than 4' piers, up to a maximum height of 20'
  • Unlike cardboard tubes, the diameters are uniform from one CEME-TUBE™ to another
  • Eliminates call-back and problems due to footing failure
  • Easily cut CEME-TUBE™ to length or strip with common power tools
  • Available sizes are 8", 10", 12", 18", 24", and 30" diameters
  • Manufactured from recycled HDPE plastic

Introducing an innovative new product to replace the cardboard forming tube!

Products Trade Name Description Content

Standard CEME-TUBE™

Ceme-Tube LLC Standard CEME-TUBE™
click to enlarge
  • Impervious to moisture, before and after pouring.
  • Eliminates “Friction frost heaving” in colder climates.
  • Can be installed, completely backfilled and then filled with concrete at any future date.
  • Can easily handle jobsite and shipping abuse without losing integrity.
  • All models are 4’ in length, but can be stacked to achieve 20’ tall piers and footings. (12’ tall for 30” model)
  • Unlike cardboard tubes, the diameters are uniform from one CEME-TUBE™ to another.
  • Easily cut with common power tools.
  • Easily strippable using a grinder with any type of cutting or grinding wheel. Note: When stripping, only cut CEME-TUBE™ approximately 90% through, score inside cut with a utility knife, and tube will split open with minimal effort.
  • Works well for underwater dock piers.
  • Will work in conjunction with manufactured footing bells like Bigfoot.
  • Optional domed top caps are available for all sizes to keep dirt, rain, children, etc. out of hole prior to pouring.
  • Finished pier will be round, smooth, and of architectural grade.
  • No more rotating form lines as with cardboard tubes.


Specs CAD Details Green Product Data

Light Pole CEME-TUBE™

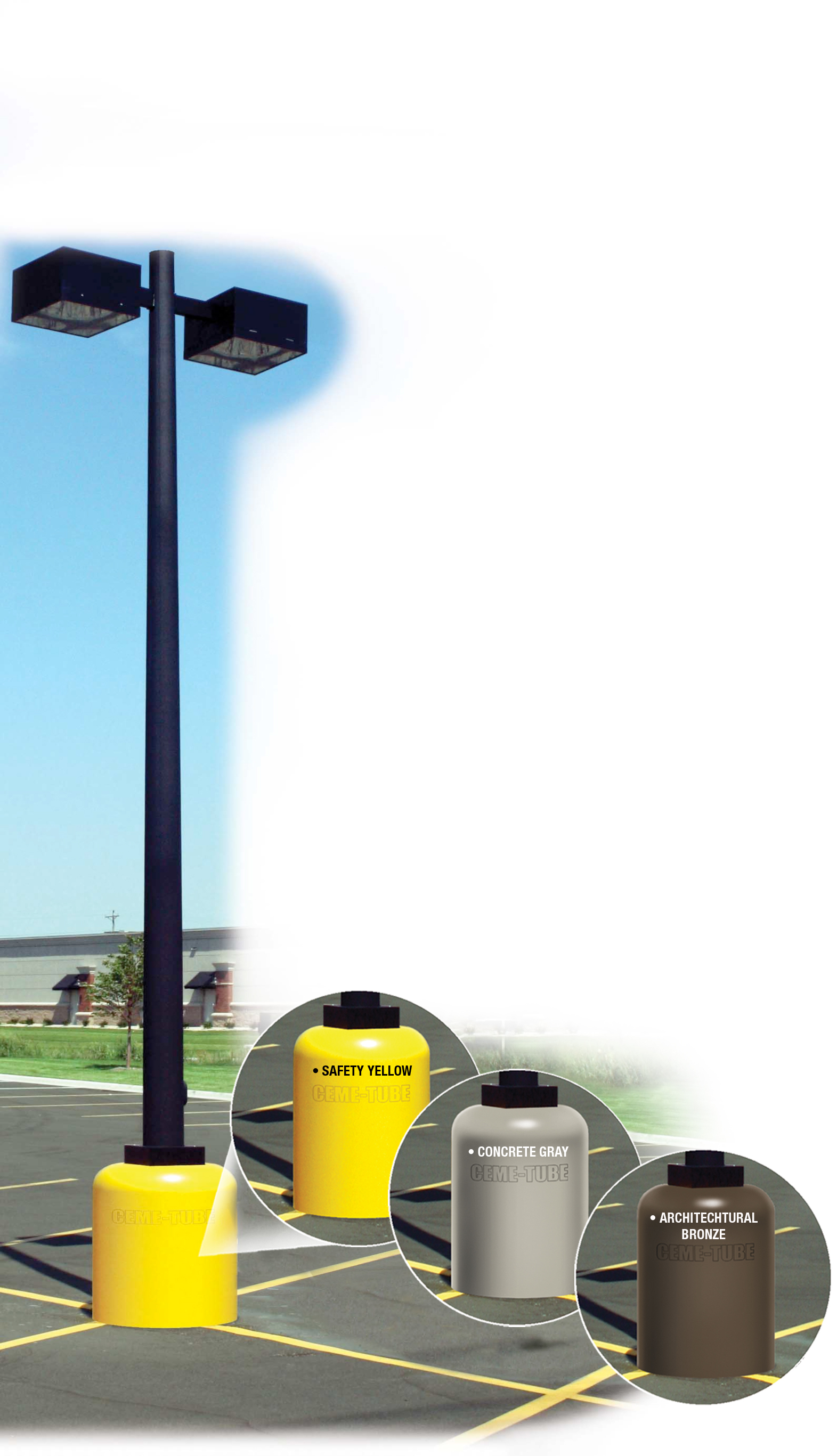

Ceme-Tube LLC Light Pole CEME-TUBE™
click to enlarge
These specially designed 18”, 24”, and 30” diameter CEME-TUBE™ models will revolutionize the installation of light pole footings. This CEME-TUBE™ is manufactured in reflective caution yellow which contains strong UV inhibitors to protect the CEME-TUBE™ from fading. To create aesthetic appeal and minimize installation labor, the top perimeter has an integral radius which will transition the sides of the CEME-TUBE™ to the top surface smoothly. A 17” diameter Hole is provided on the top to facilitate pouring, finishing and light pole installation. (14” hole on the 18” model) This CEME-TUBE™ is intended to remain on which will save time and labor on stripping, painting, and concrete finishing.

Light Pole Footing Features:
  • Available in 18", 24" and 30" diameters. All models are 4' in length
  • An integral collar on all models allows the CEME-TUBE™ to be easily stacked onto a standard black Ceme-Tube™.
  • The standard black CEME-TUBE™ must be used below grade, and below the Light Pole CEME-TUBE™ to provide deeper footings.
  • The reflective caution yellow color is molded throughout, not just applied.
  • The reflective caution yellow color is highly visible, especially at night.
  • Concrete or asphalt will not adhere to the sides of the Light Pole CEME-TUBE™ which eliminates any friction frost heaving.
  • The Light Pole CEME-TUBE™ will provide a finished product upon installation and will be very aesthetically appealing to the customer.
  • The outside of the CEME-TUBE™ is smooth and seamless.
  • The walls of the Light Pole CEME-TUBE™ are extremely heavy to handle the punishments of parking lot bumps.
  • Molded from partially recycled HDPE plastic that remains flexible to -103 Deg. F. The CEME-TUBE™ will not chip or crack when cold


Green Product Data

Light Pole CEME-TUBE™ in Red

Ceme-Tube LLC Light Pole CEME-TUBE™ in Red
click to enlarge
Available in custom colors.

The Pour in Place Bollard CEME-TUBE™

Ceme-Tube LLC The Pour in Place Bollard CEME-TUBE™
click to enlarge
This Bollard model CEME-TUBE™ is designed to provide easy installations of pour in place Bollards. This Bollard CEME-TUBE™ is an 8” or 12” standard CEME-TUBE™ molded in night reflective, caution yellow throughout. A strong UV inhibitor will keep the CEME-TUBE™ from fading. After filling the Bollard CEME-TUBE™ with re-bar reinforced concrete, the installation is complete.

Bollard Ceme-Tube Features:
  • The Bollard Ceme-Tube™ is 8” or 12” in diameter, and 4’ in length.
  • Upon filling with re-bar and concrete, the installation is complete.
  • The reflective caution yellow color is molded throughout, not just applied.
  • The reflective caution yellow color is highly visible, especially at night.
  • Molded from partially recycled HDPE plastic and is flexible to -103 deg. F. The Bollard Ceme-Tube™ will not chip or crack when cold.
  • Concrete or asphalt will not adhere to the sides of the Bollard Ceme-Tube™ which eliminates any friction frost heaving.
  • The standard black Ceme-Tube™ must be used below grade and below the Bollard Ceme-Tube™ to provide deeper footings and stability for the bollard.
  • The Bollard Ceme-Tube™ will provide a finished, maintenance free product upon installation, and will be very aesthetically appealing to the customer.
  • The outside of the Bollard Ceme-Tube™ is smooth and seamless.
  • The dome cap comes with stainless steel screws, and finishes the installation


Specs Green Product Data

Entryway Bollards

Ceme-Tube LLC Entryway Bollards<BR><BR>
click to enlarge


Specs

Barrier Bollards

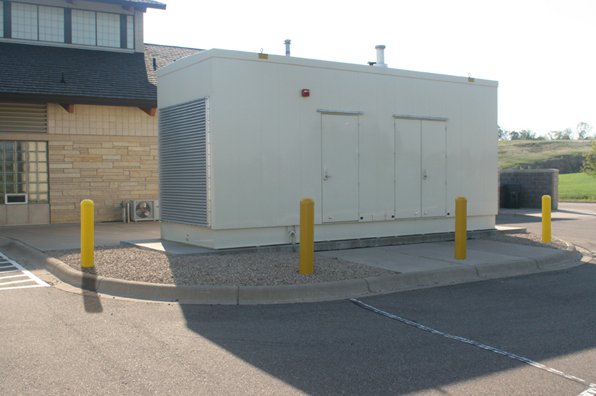

Ceme-Tube LLC Barrier Bollards<BR><BR>
click to enlarge


Specs

Handicap Sign Bollards

Ceme-Tube LLC Handicap Sign Bollards<BR><BR>
click to enlarge


Specs

Equipment Barrier Bollards

Ceme-Tube LLC Equipment Barrier Bollards<BR><BR>
click to enlarge


Specs

Tec/Info

Ceme-Tube LLC Tec/Info<BR><BR>
click to enlarge


Photo Gallery

Ceme-Tube LLC Photo Gallery<BR><BR>
click to enlarge
